180 45 Degree Fixture Clamp Extendable Clamp For D28 Series Welding Tables

Brand Name : LEMAR

Model Number : D28/D16

Certification : CE

Place of Origin : WUXI

MOQ : 5

Price : 1-50 USD

Payment Terms : D/A,L/C,D/P,T/T,Western Union

Supply Ability : 5000 units/month

Delivery Time : 7-15 work days

Packaging Details : 3000*2000*300mm

Adapter hole diameter : φ28.065–φ28.149mm

Hole spacing matching : 100±0.05mm

Horizontal extension stroke : 0–300mm

Vertical clamping stroke : 0–120mm

Clamping force : Maximum 5000N (500kgf)

Main material : 45# High-quality carbon steel / Q355

Surface treatment : Nitriding treatment (HV450–630)

Repeatability : ±0.03mm

Maximum load-bearing capacity at a single point : 800kg

Contact Now

180°/45° Extendable Clamp for D28 Series Welding Tables
180 45 Degree Fixture Clamp Extendable Clamp For D28 Series Welding Tables

180°/45° Extendable Clamp for D28 Series Welding Tables

  • Insertable through system holes, eliminating avoidable interference edges. Each tube can be used individually.
  • Features a stop ring for height pre-positioning and a 360° rotating rod to bypass interference edges.
  • Rapidly increases clamping force with minimal energy consumption; clamping speed is 5 times faster than traditional screw clamps.
  • Replaceable risers are available in various lengths. Length can be customized.
180 45 Degree Fixture Clamp Extendable Clamp For D28 Series Welding Tables
180 45 Degree Fixture Clamp Extendable Clamp For D28 Series Welding Tables
Product Specifications
180 45 Degree Fixture Clamp Extendable Clamp For D28 Series Welding Tables

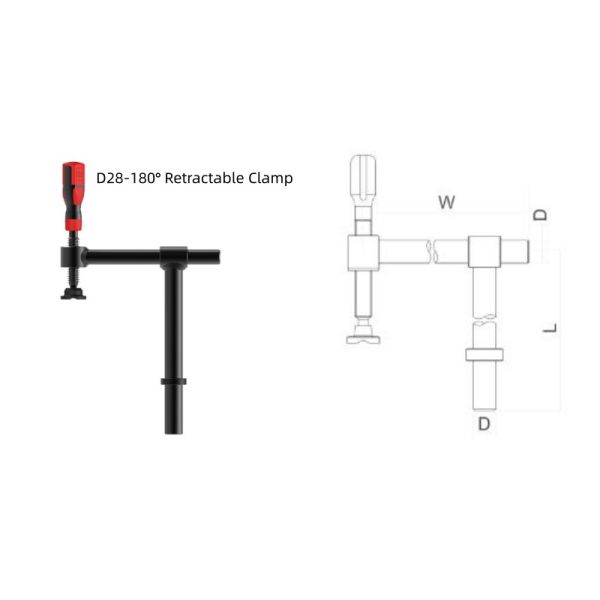

D28-180° Retractable Clamp
Mounting hole diameter Φ28 mm
Clamping angle 180° (horizontal clamping arm, vertical downward pressure)
Clamping arm extension stroke 150-300 mm / 200-400 mm (optional)
Column height stroke 100-250 mm / 150-350 mm (optional)
Clamping method Manual screw clamping
Maximum clamping force Approximately 1000-1500 kgf
Body material 45# steel / tempered alloy steel
Surface treatment Blackening / Nitriding for rust prevention
Positioning accuracy ±0.05 mm
Locking method Base locking pin + joint locking bolt
180 45 Degree Fixture Clamp Extendable Clamp For D28 Series Welding Tables

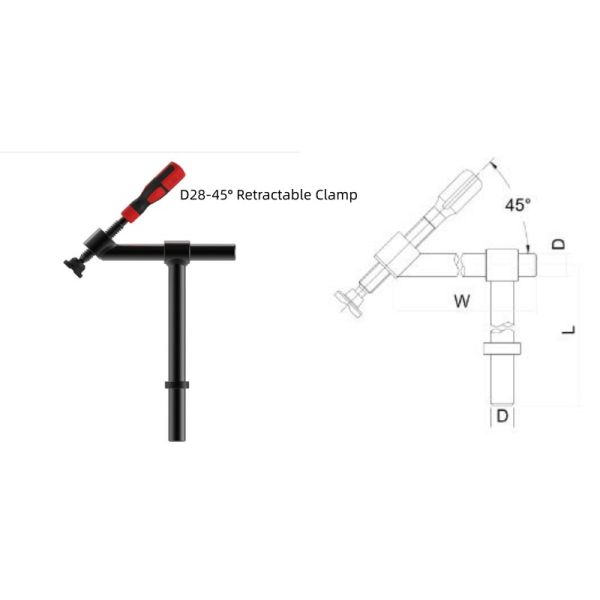

D28-45° Retractable Clamp
Mounting hole diameter Φ28 mm
Clamping angle 45° (slanted clamping arm, downward clamping)
Clamping arm extension stroke 150-300 mm / 200-400 mm (optional)
Column height stroke 100-250 mm / 150-350 mm (optional)
Clamping method Manual screw clamping
Maximum clamping force Approx. 800-1200 kgf
Body material 45# steel / tempered alloy steel
Surface treatment Blackening / Nitriding for rust prevention
Positioning accuracy ±0.05 mm
Locking method Base locking pin + joint locking bolt
Product Advantages Summary
  • Dual-angle design: Quickly switchable between 180° and 45° angles, adaptable to various complex workpieces including flat surfaces and corners, broadening its application range
  • Flexible and adjustable: Telescopic arm + 360° rotation, combined with spindle fine-tuning, fully adaptable to workpieces of different sizes and positions
  • Stable and reliable: High-rigidity material + self-locking structure, impact-resistant and non-loosening, ensuring welding accuracy and operational safety
  • Highly efficient operation: Plug and play, one-button locking, quick clamping and releasing, significantly improving workpiece positioning and welding efficiency
  • Strong compatibility: Perfectly compatible with D28 series welding stations, can be combined with other accessories to form a complete flexible positioning system
  • Durable: Rust-proof and wear-resistant treatment, replaceable wearing parts, low maintenance costs, and long service life
Applicable Scenarios

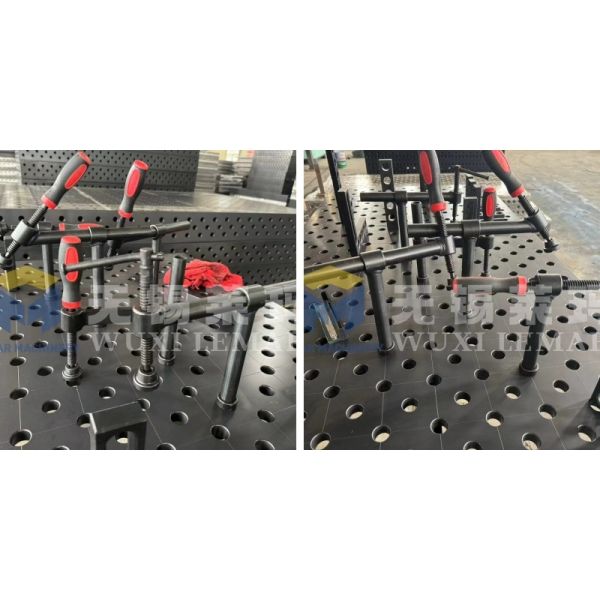

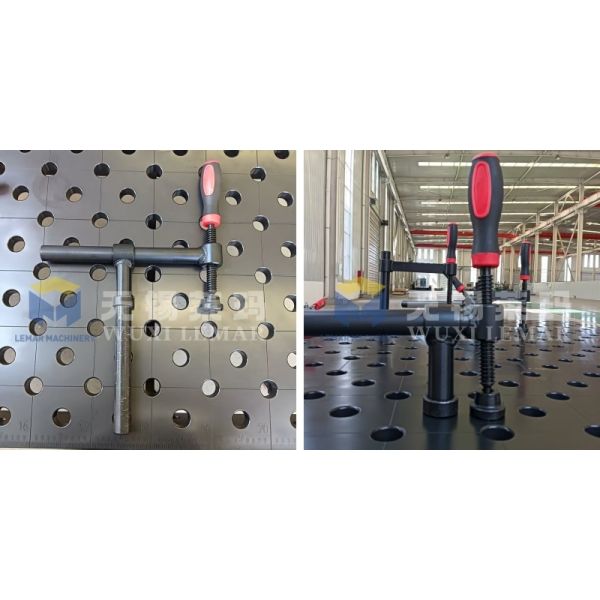

  • Sheet metal welding, frame welding, cabinet welding (e.g., electrical distribution boxes, equipment housings)
  • Steel structure processing, pipe welding, support assembly (e.g., building steel structures, engineering machinery supports)
  • Positioning and welding of automotive parts and engineering machinery parts
  • Assembly and positioning of tooling fixtures and testing fixtures
  • Flexible production lines for multiple varieties and small batches (no need for frequent fixture changes, adaptable to different specifications of workpieces)
  • Welding of complex workpieces requiring simultaneous flat pressing (180°) and oblique pressing (45°) (e.g., irregularly shaped parts, stepped parts, box corners, etc.)
Additional Notes

Installation Notes: When inserting the positioning column, ensure it fits tightly with the positioning hole on the welding table and tighten the positioning pin to prevent loosening. After switching angles, confirm the locking mechanism is in place to prevent angle shift during welding.

Maintenance: Regularly clean welding slag and dust from the fixture surface and apply a small amount of lubricating oil (to the screw area) to extend its service life. Replace worn parts promptly if problems such as worn clamping heads or stuck threads are found.

Safety Tips: When clamping the workpiece, ensure the clamping force is moderate to avoid damaging the workpiece with excessive force or causing displacement with insufficient force. During welding, avoid touching high-temperature parts of the fixture to prevent burns.

Purchase Tips: We offer other types of clamping accessories. The clamping head can be replaced with stainless steel or other materials. For custom orders or other sizes of telescopic clamps, please contact us.
