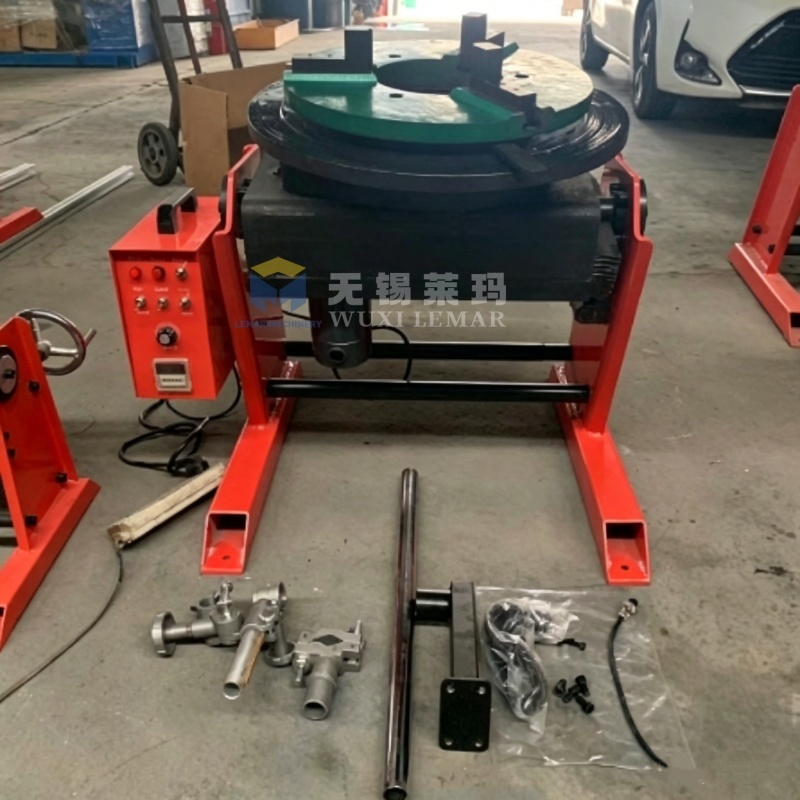

100kg Welding Positioner Rotary Tilting Welding Table CE Certified

Rotaion Speed : 0.1-1rpm

Model Number : BWJ-100

Speed Adjust Way : VFD Adjustment

Rotation Speed : 0.5-5rpm

MOQ : 1

Delivery Time : 10-20 work days

Packaging Details : 65.00cm * 56.00cm * 64.00cm

Central Hole Diameter : φ65 mm

Payment Terms : T/T,D/P,D/A,L/C

Model NO. : BWJ-100

Brand Name : LEMAR

Tilting Angle : 0-90°

Place of Origin : WUXI

Function : Pipe Flange Welding Turning Table

Price : 500-1000USD

Horizontal Loading Weight : 100kg

Supply Ability : 500 units/month

Max Eccentricity Distance : 150mm

Certification : CE

Contact Now

100kg Welding Positioner Rotary Tilting Welding Table CE Certified
Product Overview

Our 100kg welding positioner is compact light-duty welding auxiliary equipment designed to rotate and tilt workpieces into optimal flat downhand welding positions. This significantly improves welding quality and workshop efficiency. Suitable for small flanges, pipe fittings, small tanks, and metal structural parts. Compatible with both manual welding and robotic welding systems. Manufactured by Wuxi Lemar Machinery with CE certification, ensuring stable operation and easy use.

100kg Welding Positioner Rotary Tilting Welding Table CE Certified100kg Welding Positioner Rotary Tilting Welding Table CE Certified

Key Features
  • Rated load 100kg with compact frame and small footprint for limited workshop space
  • 360° rotary + 0~90° tilting capability for ideal welding angles
  • Variable frequency stepless rotation speed for smooth, shake-free operation
  • IP54 protection control box for workshop safety
  • Supports TIG / MIG / MAG / CO₂ welding with welding machine linkage
  • Optional accessories: chuck, worktable with T-slot, foot switch, customized voltage
  • CE certified and exported to Europe, South America, and Southeast Asia
Technical Parameters
Item Specification
Model WP-100
Rated Horizontal Load 100 kg
Tilting Angle 0°-90°
Rotation 360° continuous rotation
Rotation Speed 0.1-5 rpm, stepless adjustable
Control Mode Variable frequency control
Protection Class IP54
Power Supply 380V 50Hz (customizable 220V/110V)
Optional Accessory 3-jaw chuck, T-slot worktable, foot pedal, welding torch holder
100kg Welding Positioner Rotary Tilting Welding Table CE Certified100kg Welding Positioner Rotary Tilting Welding Table CE Certified
Applications
  • Small flange, pipe joint, and tube fittings ring seam welding
  • Small pressure vessel and stainless steel shell fabrication
  • Metal structural parts and machinery spare parts welding
  • Manual welding station & robotic welding cell integration

100kg Welding Positioner Rotary Tilting Welding Table CE Certified100kg Welding Positioner Rotary Tilting Welding Table CE Certified

Customization Options
  • Worktable size & T-slot customization
  • Different chuck types and clamping ranges
  • Torch holder, foot switch, and timer function
  • Voltage adaptation for different countries
  • Servo upgrade for high precision requirements
Why Choose Wuxi Lemar
  • 15+ years focused on welding positioner, rotator and manipulator manufacturing
  • Own factory in Wuxi - not a trading company - offering better prices and faster response
  • CE certified and exported to over 30 countries worldwide
  • Full customization: capacity, table size, chuck, voltage, PLC, servo system
  • Strict QC before shipment: load test, rotation test, electrical safety check

100kg Welding Positioner Rotary Tilting Welding Table CE Certified100kg Welding Positioner Rotary Tilting Welding Table CE Certified

Frequently Asked Questions
Q1: Can this positioner work with welding robot?
A: Yes, it can match with welding robot for automatic welding production line.
Q2: What welding types does it support?
A: MIG, TIG, CO₂, plasma welding are all available.
Q3: Trade terms?
A: EXW / FOB / CIF are acceptable. We provide professional quotation and technical drawing.
Q4: Do you have CE certificate?
A: Yes, CE certification available for European market.
