Complete Accessory Package D28 Modular Welding Table for All Metal Welding Projects
Our D28 modular welding table with complete accessory package is an all-in-one 3D flexible fixturing solution designed for every metal fabrication project. Unlike ordinary single-sided welding benches, this full five-face machined platform adopts universal D28 hole system, matching a full set of standardized clamping supports, positioning blocks and locking pins.
Suitable for carbon steel, stainless steel, aluminum alloy, tubing, sheet metal, heavy frame and structural steel welding. One table covers prototype sampling, small batch production, mass assembly line and robot welding workstation. The full accessory kit eliminates extra separate fixture purchases; you can start precise welding work right after delivery.
Size Specification Chart
| Table Size (L×W mm) |
Grid Standard |
Positioning Accuracy |
Working Surface |
| 1000 × 1000 |
100×100mm |
±0.03-0.05mm |
5-sided full machining |
| 1000 × 1200 |
100×100mm |
±0.03-0.05mm |
5-sided full machining |
| 1000 × 1500 |
100×100mm |
±0.03-0.05mm |
5-sided full machining |
| 1000 × 2000 |
100×100mm |
±0.03-0.05mm |
5-sided full machining |
| 1200 × 2000 |
100×100mm |
±0.03-0.05mm |
5-sided full machining |
| 1200 × 2400 |
100×100mm |
±0.03-0.05mm |
5-sided full machining |
| 1500 × 2000 |
100×100mm |
±0.03-0.05mm |
5-sided full machining |
| 1500 × 3000 |
100×100mm |
±0.03-0.05mm |
5-sided full machining |
| 4000 × 2000 |
100×100mm |
±0.03-0.05mm |
5-sided full machining |
Support Base System (3 Optional Versions)
- Standard Fixed Adjustable Legs (Package Default): Heavy round tube support with height-adjustable leveling feet, ±50mm adjustment range, stable for fixed production lines and robot stations.
- Mobile Brake Caster Legs (Upgrade Option): Silent heavy PU wheels with full lock function, easy to move between workshops, ideal for sample rooms.
- Hydraulic Lifting Base (High-End Custom): 750-1050mm stepless height adjustment, match different operators and robotic equipment heights.

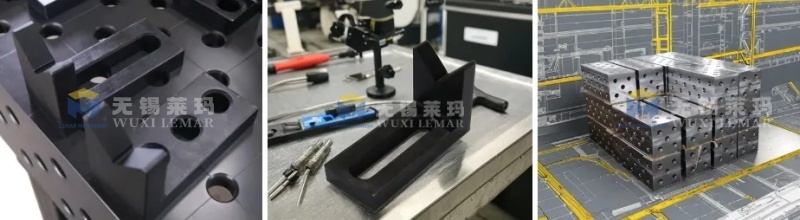

Main Accessory Categories Included
- Locking & Connection Parts: Quick lock pins, countersunk locating pins, connection bolts, splicing pressing plates
- Height Support Parts: L-shaped angle brackets, U-box risers, equal-height blocks, V-type tube positioning blocks
- Clamping & Limiting Parts: Fast hold-down clamps, 45° angled pressers, magnetic non-marking clamps, side stop blocks
- Measuring & Angle Locators: Precision right-angle rulers, extended calibration scales, multi-angle positioning tools
- Auxiliary Tools: Storage trolley, disassembly spanner, welding slag scraper, anti-scratch gaskets
Logistics Packaging Details
Export Professional Packing
Welding table main unit: IPPC fumigated-free solid wooden case, internal waterproof anti-rust oil paper, foam corner protection, steel belt reinforcement against collision
Accessories: Independent iron storage trolley, separate layered partition to avoid thread damage during transit
Delivery Cycle
- Standard size in stock: 7-10 working days
- 2-5 sets bulk order: 12-15 working days
- Custom non-standard specifications over 10 units: 18-25 working days
Shipping Options
Sea LCL/FCL, Air freight available; complete customs clearance documents provided (fumigation certificate, CO, commercial invoice, packing list, test reports)
Customization Service
We accept personalized upgrades according to workshop production demands:
- Dual-purpose tabletop with D28 hole system + T-slot
- Custom hole spacing, extra thick tabletop, special cut edge size
- Robot special positioning edge and installation datum slot
- Anti-static tabletop for scratch-free aluminum & copper precision welding
- Adjust accessory package quantity to match your production line
Don't waste time making custom single-use jigs.
Grab our Complete Accessory Package D28 Modular Welding Table to boost your welding efficiency and cut production costs.
Send an inquiry now to get tailored solutions and competitive bulk prices.
